Substitute for LiftMaster Stinger 390LMPB1V is an 81LM for liftmaster Garage Door Opener Remote Control [375UT-2button]

Roll over image to zoom in Click on image to zoom

Substitute for LiftMaster Stinger 390LMPB1V is an 81LM for liftmaster Garage Door Opener Remote Control [375UT-2button]

Name: LiftMaster Stinger 390LMPB1V is an 81LM for liftmaster Garage Door Opener Remote Control
Brand: LiftMaster
SKU: 90663-NEW
Price: 15.85 USD
Availability: InStock
Rating: 5 (3 reviews)

LiftMaster Part #: 390LMPB1V

3 reviews

Stinger 390LMPB1V garage door opener

CONTENTS

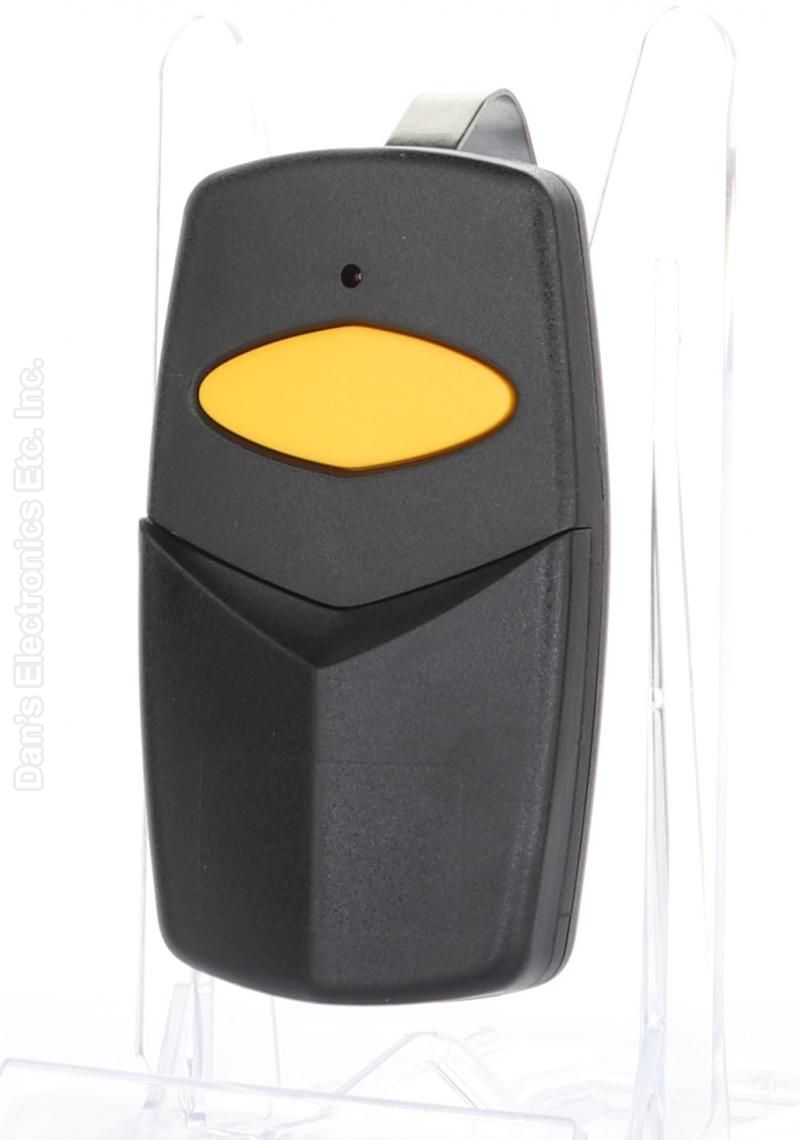

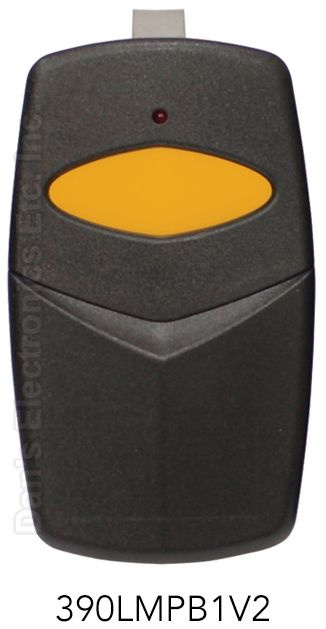

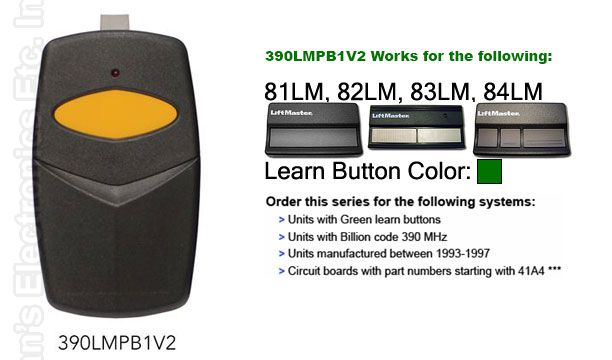

The Stinger transmitter is a very small (1-5/8" x 3" x 1/2") visor style remote operating at 390 MHz. The Stinger achieves its small size by using state-of-the-art, surface mount components. Completely replaces the 81LM Liftmaster billion code series remotes. It has been designed for use with; Chamberlain, LiftMaster and Sears garage door openers with GREEN programming buttons. Works with Liftmaster 1992 to 1997 Billion code.

PROGRAMMING

Find the "learn" button on your existing garage door opener (the unit with the motor located on the ceiling of your garage).
Press and hold this "learn" button for 2 seconds and the release. The LED light located beside the "learn" button will go on.
Then press the button on your new transmitter remote for 1 second and then release to activate it.
The LED light on your existing garage door opener will flash, then go off.
Your remote transmitter is now programmed into your existing garage door opener and will operate your garage door.

OPERATION

Once the codes are set to match the transmitter codes, you may test the system. Ensure the gate or door is visible and clear before testing.

Step 1- Push the Stinger's button from a distance of about ten feet. If the receiver activates, the switches are properly set.

Step 2- Test the transmitter from several locations to discover any "blind spots" caused by interference.

BATTERY ACCESS

Slide front cover down to reach battery compartment. Be aware of battery polarity when replacing the A23 battery.

TECHNICAL SPECIFICATIONS

Operating Frequency- 390 MHz

Number of Buttons- 1

1 ea. Long lige12V A23 Battery

Number Combinations- Lots :-)

Operating Temperature- -20F - 100F

Overall Dimensions- 1/2" x 3" x 1-5/8"

Weight- 1 oz.

Visor Clip included

Specifications

Model: Stinger 390LMPB1V is an 81LM for liftmaster
Part Number: 390LMPB1V
Catalogue No.: 90663

Dimensions: 3.00 x 2.00 x 1.00 (W x L x D, inches)
