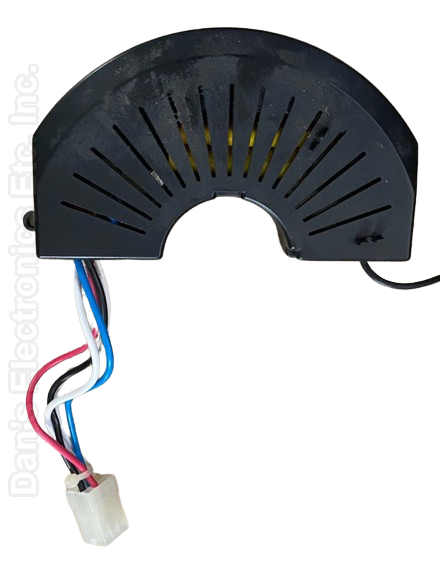

Hampton-Bay MR58A Ceiling Fan Receiver

Hampton-Bay MR58A Ceiling Fan Ceiling Fan Receiver
Part Number: MR58A

Select option:

Quantity:

Product Description:

Details for substitute (ANDERIC FAN35T/FAN30R ceiling fan remote control kit):

The Anderic FAN35T-FAN30R-KIT will replace your original Harbor Breeze FAN35T and FAN30R units.


Color: Ivory

ASSOCIATED NUMBERS:

  • FCC ID: L3HFAN35T for Harbor Breeze

  • 303.9MHz Frequency

  • REQUIRES BATTERY TYPE: 23A12V (NOT INCLUDED, YOU MAY ADD THE BATTERY TO CART FROM CART PAGE).


Programming instructions:

Below instructions is for Learning with the FAN30R receiver pairing:
A. Align “DIP” switches on any pattern on the FAN35T for Harbor Breeze remote.
B. Turn on the Ceiling Fan main power switch and within 30 seconds after Ceiling Fan power is on,
C. Then push the “Learn” key for 3 to 5 seconds on FAN35T for Harbor Breeze.
D. Then the Lights on the Ceiling Fan will blink 2 times (or fan speed turns to MEDIUM speed). It means your setting is good. Test the rest of the buttons to make sure they work.
-----
If above doesn't work, try pressing and holding the OFF and LIGHT keys simultaneously for up to 10 seconds, lights should blink to confirm pairing.

If you have a second fan with the same remote:
A. Align DIP switches on FAN35T for Harbor Breeze to a different pattern than the first fan.
B. C. D. steps are the same as above.



FAN30R RECEIVER INFORMATION:
The Anderic FAN30R Receiver for Harbor Breeze Ceiling Fans that require the U-shaped FAN30R receiver.

ATTENTION: WILL NOT REPLACE Dawnsun FD30-H02R (FD30H02R) or FD40-H02R(FD40H02R) Receiver MODELS

Specifications:
Model: FAN30R for Harbor Breeze-190WA
Max. downlight tungsten 190 watts or max. ballast 190 VA non-dimmer
120v/60hz max motor 1a ceiling fan only.

PAIRING WITH REMOTE
in order to pair this receiver with your remote you must:
Install the receiver and make sure power is going through the receiver.
On remote press and hold the pairing button inside the battery compartment for 5 seconds.
Lights on the fan will blink twice to confirm pairing successful.

SPECS
5 3/16" LONG
3 1/8" WIDE
1" THICK


Model: FAN35T/FAN30R
Part Number: FAN35T-FAN30R-KIT
Catalogue No.: 202945

The replacement for original Hampton-Bay MR58A Ceiling Fan Receiver is in-stock and ships within 24 hours.
The replacement for original Hampton-Bay MR58A Ceiling Fan Receiver carries a 60-Days Warranty.

THE FAN MR58A receiver is no longer available and replaced by the FAN30R receiver. NOTE: MOST BUY THE KIT, the old remote will not work with new receiver)

Original remote that came with this receiver is the (KUJCE9603)

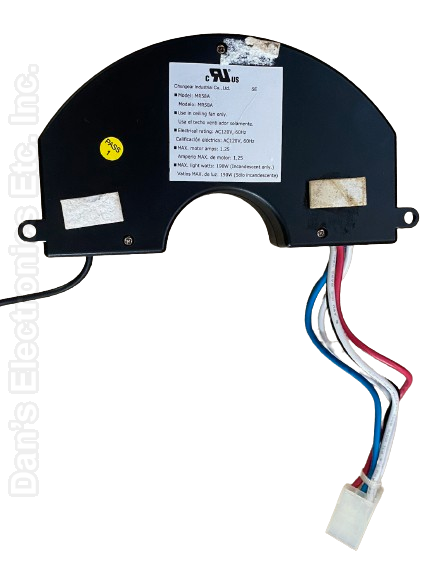

Model: MR58A
Catalogue No.: 273379
Dimensions: 4.00 x 4.00 x 3.00 (W x L x D, inches)
