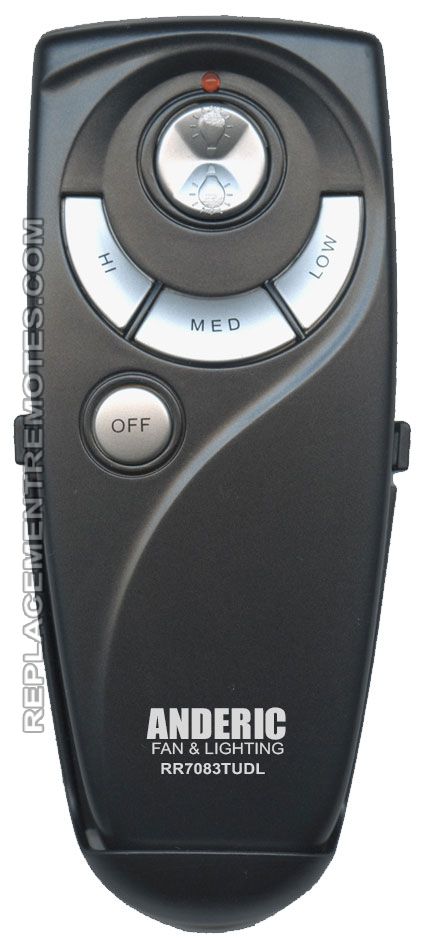

The Anderic UC7083TUDL (RR7083TUDL) is a 3-speed ceiling fan remote with separate up-light and down-light control for Hampton Bay fans. It runs at 304 MHz and pairs by 4 dip switches.
How to confirm the fit
Find the FCC ID on the back of your old remote or inside its battery compartment. It should match CHQ7083T. If your remote shows a different FCC ID, this remote will not work with your fan's receiver.
Specifications
Shipped remote: Anderic UC7083TUDL
FCC ID: CHQ7083T
Radio frequency (RF): 303.217 MHz
Battery: 1 23A (not included)
Good to Know
Light dimming needs incandescent or compatible dimmable bulbs.
For a receiver, use the FAN28R-UD.
Setup / Pairing
Pairing by matching the dip switches (4 switches, 16 codes)
Make sure the fan has power and works correctly.

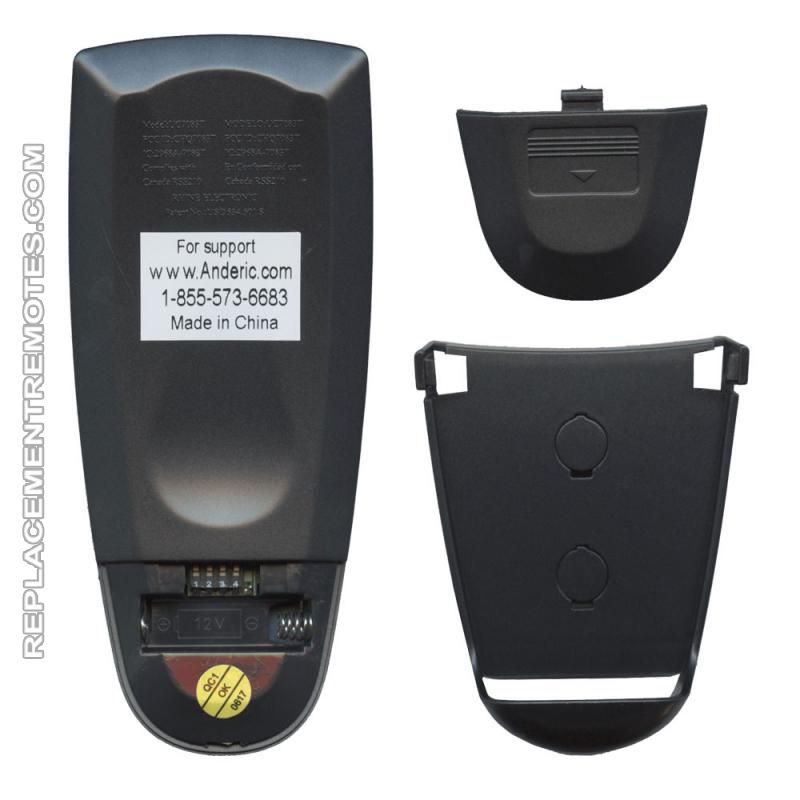

Open the battery compartment on the remote.
Set the remote's 4 dip switches to EXACTLY the same up/down pattern as the switches on your fan's receiver. The factory setting is all up.
Install the battery (not included), matching the polarity marks, and close the battery compartment.
Test the fan and light keys.
What's in the Box
1 Anderic UC7083TUDL remote
Wall mount bracket
Battery not included
Compatible Models
Hampton Bay UC7083T and CHQ7083T remotes; UC7067GMRX (UC7067RC) and FAN28R-UD receivers at 304 MHz with 4 dip switches
Also works with: 166662 Brookedale II 60 Inch Ceiling Fan, 582083 Ponte Vecchio 54 in Ceiling Fan, AL101 Brookedale II 60 in. Ceiling Fan, AL101BN Brookedale II 60 in. Brushed Nickel Ceiling Fan, Ponte Vecchio 54 in Natural Iron
Before ordering, check the model or part number printed on your old remote (usually on the back or inside the battery compartment) and compare it to this list.
Model: UC7083TUDL CHQ7083T with Up Light for Hampton Bay Part Number: RR7083TUDL Catalogue No.: 91819
Battery Required : 23a 12V Frequency Type : RF/Bluetooth FCC ID : CHQ7083T - 303.217 MHz (304 MHz) Frequency (MHz) : 303.217 Dimensions: 2.00 x 6.00 x 1.00 (W x L x D, inches)
