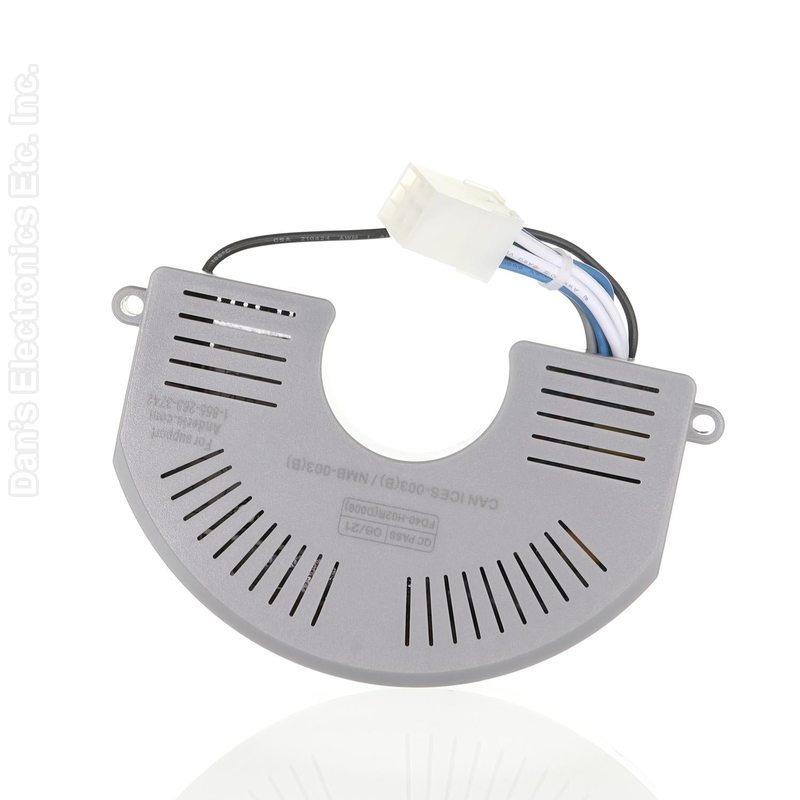

The Anderic FD40-H02R is a downlight-only DC ceiling fan receiver for select Harbor Breeze fans, including Mazon, Kingsbury, Wakefield, Portes and Saratoga.
Specifications
- Shipped receiver: Anderic FD40-H02R
- Radio frequency (RF)
Good to Know
- Downlight only: it has no uplight output.
- It does not include a remote control.
- You need to take the fan down to reach the receiver.
Setup / Pairing
Installing the receiver
- Turn OFF the power to the fan with the light switch or circuit breaker. You will need to take down the entire fan to reach the receiver.
- Disassemble the fan (see the fan's installation manual).
- Remove the screws on top of the motor with the right Phillips screwdriver or Allen wrench, and lift the motor housing.
- Remove the two screws holding the receiver, unplug the wire harness and remove the receiver.
- Connect the new receiver's wire harness and attach it with the 2 screws.
- Push all wires together, replace the motor housing and screw it back on.
- Reassemble the fan on the ceiling.
Pairing
- Restore power to the fan.
- Within 30 seconds, tap the LEARN key on the remote. If learning succeeds, the fan light blinks three times and turns on.
Troubleshooting
- Confirm power is on at the breaker and wall switch.
- Check that any dip switches on the remote and receiver match.
- Receivers can fail from power surges, lightning or faulty wiring.
Safety: turn off power at the circuit breaker before opening the fan canopy or touching the receiver.
Troubleshooting
- Fan or light does not turn on: check power at the breaker and wall switch, the light kit wiring and the bulb.
- Fan speeds do not work correctly: make sure the receiver suits the fan, the remote matches the receiver, and the wiring is secure.
- Light does not dim: not all LED bulbs dim; use dimmable incandescent or dimmable LED bulbs.
- Intermittent operation: turn the power off and recheck all wiring connections and wire nuts.
What's in the Box
- 1 Anderic FD40-H02R receiver
Compatible Models
- select Harbor Breeze DC ceiling fans (Mazon, Kingsbury, Wakefield, Portes, Saratoga) with A25-TX012 or RRTX012 remotes
- Other part numbers: FD30-H02R, FD30H02R
- Also works with: Harbor Breeze
Before ordering, check the model or part number printed on your old remote (usually on the back) and compare it to this list.
Dimensions: 5.50 x 3.00 x 1.00 (W x L x D, inches)
