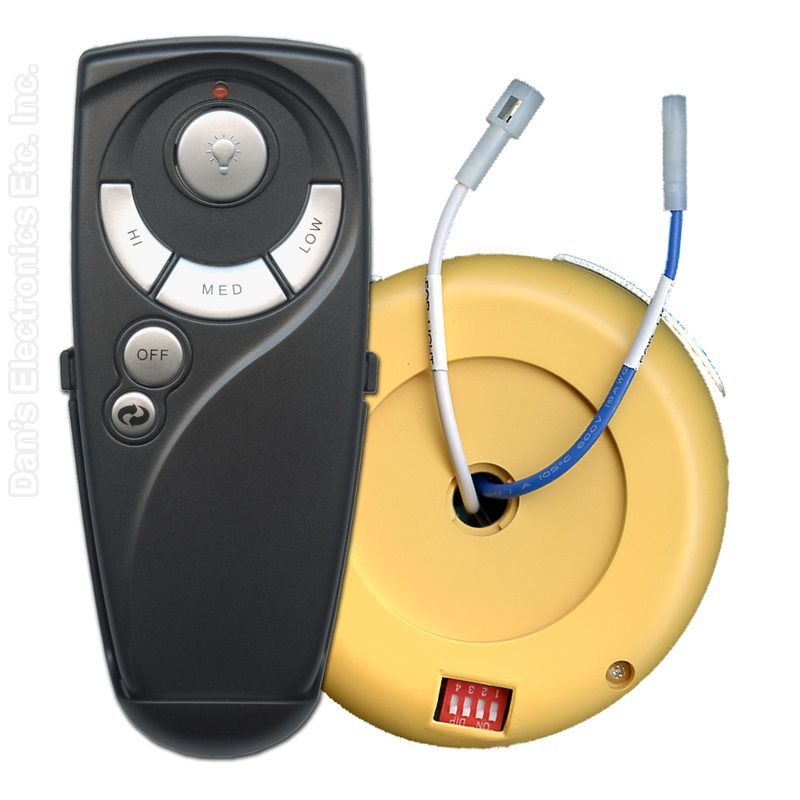

This Anderic kit pairs the FAN2R plug-in ceiling fan receiver with the RR7083TR remote (reverse key, 304 MHz, 4 dip switches) for Hampton Bay and other fans that use a plug-in receiver with reverse. It replaces FAN2R and RR7083TR.

Specifications

• Kit: Anderic FAN2R-RR7083TR-KIT
• Radio frequency (RF): 304 MHz
• Battery: 1 23A (not included)

Good to Know

• The FAN2R plugs into the fan in place of the old receiver; check your fan uses this plug-in receiver style before ordering.
• Key names, layout and the look of the case may differ from the original. Compare your original's buttons before ordering.

Setup / Pairing

1. Turn the power to the fan off at the circuit breaker. Install the receiver in the fan canopy following the wiring instructions included with the kit, then restore power.
2. Remove the remote's battery cover: push firmly below the arrow and slide it off. Set the code switches before installing the battery, because on some models the battery covers the switch panel.
3. With a small screwdriver or pen tip, slide the 4 code (dip) switches up or down to a pattern of your choice. The factory setting is all up.
4. Set the 4 code switches on the fan's receiver to exactly the same pattern as the remote. The remote and receiver only work together when the patterns match.
5. Insert the battery (not included), matching the polarity marks, and replace the battery cover.
6. Test: press a fan speed key and the light key. The fan and light respond when the patterns match.
7. If you cannot reach the receiver: set the remote's switches to one of the 16 patterns, press a key to test, and if the fan does not respond, move to the next pattern. Repeat until the fan responds.
8. If the fan or light turns on and off by itself, another remote is interfering: set a new matching pattern on both the remote and the receiver.

What's in the Box

• 1 remote and 1 receiver
• Battery not included

Compatible Models

• Hampton Bay and other ceiling fans that use a FAN2R-style plug-in receiver
• Works with many Hunter ceiling fans, including models such as 8511202, 85069-060 and 23530420.

Before ordering, check the model or part number printed on your old remote (usually on the back or inside the battery compartment) and compare it to the full compatible models list.
